ICON Community Interface 0.4.0
|
|
ICON Community Interface 0.4.0
|
comin_host_interface.F90 More...
Data Types | |
| interface | comin_metadata::comin_metadata_set_host |
Sets metadata for an exposed variable. Note: The host model uses the alias comin_metadata_set. More... | |
| type | comin_plugin_types::t_comin_plugin_description |
| Data type, describing the dynamic libraries. More... | |
Functions/Subroutines | |
| recursive subroutine, public | comin_callback::comin_callback_context_call (entry_point_id, domain_id, lacc) |
| Routine to find callback routine associated with current entry point. | |
| subroutine, public | comin_descrdata::comin_descrdata_set_global (comin_global_info) |
| Fill global data. | |
| subroutine, public | comin_descrdata::comin_descrdata_set_domain (comin_domain_info) |
| Set up data type for grid data. | |
| subroutine, public | comin_descrdata::comin_descrdata_set_simulation_interval (comin_time_info) |
| Fill time stamp info. | |
| subroutine, public | comin_descrdata::comin_current_set_datetime (sim_time_current) |
| Update time stamp info, current time information. | |
| subroutine, public | comin_descrdata::comin_descrdata_set_timesteplength (jg, dt_current) |
| Fill array with timestep. | |
| subroutine, public | comin_descrdata::comin_descrdata_finalize () |
| Clean descriptive data structure in ComIn currently no content but keep for future use. | |
| subroutine, public | comin_parallel::comin_parallel_mpi_handshake (comm, group_names, component_name) |
| Procedure for the communicator splitting ("MPI handshake") that has been harmonized with the respective algorithm of the YAC coupler software. | |
| subroutine, public | comin_setup::comin_plugin_primaryconstructor (plugin_list) |
| Execute primary constructors. | |
| subroutine, public | comin_setup::comin_setup_check (plugin_str, wp_check) |
| Performs basic compatibility checks. | |
| subroutine, public | comin_setup::comin_setup_init (lstdout, output_unit) |
| Initialize the comin stateThis routine needs to be called by the host before any other comin call. | |
| subroutine, public | comin_setup::comin_setup_finalize () |
| Destructor. | |
| subroutine, public | comin_setup::comin_descrdata_set_fct_glb2loc_cell (fct) |
| Sets the "global-to-local" index lookup function. | |
| subroutine, public | comin_setup::comin_setup_errhandler (error_handler) |
| Sets the global error handler procedure pointer. | |
| subroutine, public | comin_state::comin_setup_set_verbosity_level (iverbosity) |
Sets verbosity level, related to ICON's msg_level. 0 = silent. | |
| integer function, public | comin_state::comin_setup_get_verbosity_level () |
| Returns verbosity level. | |
| type(c_ptr) function, public | comin_variable::comin_request_get_list () |
| subroutine, public | comin_variable::comin_var_list_append (var_descr, cptr, device_ptr, array_shape, type_id, dim_semantics, lcontainer, ncontained, var_handle) |
| Append item to variable list. | |
| subroutine, public | comin_variable::comin_var_list_finalize () |
| Destruct variable list, deallocate memory. | |
| subroutine, public | comin_variable::comin_var_request_list_finalize () |
| Destruct variable request list, deallocate memory. | |
| subroutine, public | mo_mpi_handshake::mpi_handshake (comm, group_names, group_comms) |
| Procedure for the communicator splitting ("MPI handshake") that has been harmonized with the respective algorithm of the YAC coupler software. | |
ComIn entities exposed to the host model (e.g. ICON).
Entities that are exposed to both, the host interface and the plugin interface are listed in the group Common.
| recursive subroutine, public comin_callback::comin_callback_context_call | ( | integer, intent(in) | entry_point_id, |
| integer, intent(in) | domain_id, | ||
| logical, intent(in) | lacc ) |
Routine to find callback routine associated with current entry point.
call callback functions given by order in entry_point_order
Definition at line 145 of file comin_callback.F90.
| subroutine, public comin_descrdata::comin_current_set_datetime | ( | character(len=*), intent(in) | sim_time_current | ) |
Update time stamp info, current time information.
Definition at line 85 of file comin_descrdata.F90.
| subroutine, public comin_descrdata::comin_descrdata_finalize |
Clean descriptive data structure in ComIn currently no content but keep for future use.
Definition at line 193 of file comin_descrdata.F90.
| subroutine, public comin_descrdata::comin_descrdata_set_domain | ( | type(t_comin_descrdata_domain), dimension(:), intent(in) | comin_domain_info | ) |
Set up data type for grid data.
Definition at line 54 of file comin_descrdata.F90.

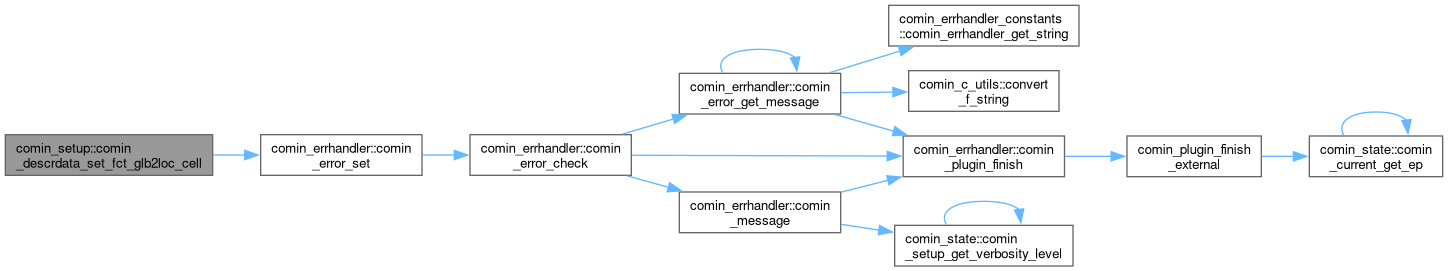

| subroutine, public comin_setup::comin_descrdata_set_fct_glb2loc_cell | ( | procedure(comin_glb2loc_index_lookup_fct) | fct | ) |
Sets the "global-to-local" index lookup function.
| fct | index lookup function |
Definition at line 359 of file comin_setup.F90.
| subroutine, public comin_descrdata::comin_descrdata_set_global | ( | type(t_comin_descrdata_global), intent(in) | comin_global_info | ) |
Fill global data.
Definition at line 47 of file comin_descrdata.F90.
| subroutine, public comin_descrdata::comin_descrdata_set_simulation_interval | ( | type(t_comin_descrdata_simulation_interval), intent(in) | comin_time_info | ) |
Fill time stamp info.
Definition at line 61 of file comin_descrdata.F90.
| subroutine, public comin_descrdata::comin_descrdata_set_timesteplength | ( | integer, intent(in) | jg, |
| real(wp), intent(in) | dt_current ) |
Fill array with timestep.
Definition at line 180 of file comin_descrdata.F90.
| subroutine, public comin_parallel::comin_parallel_mpi_handshake | ( | integer, intent(in) | comm, |
| character(len=max_grpnamelen), dimension(:), intent(in) | group_names, | ||
| character(len=*), intent(in) | component_name ) |
Procedure for the communicator splitting ("MPI handshake") that has been harmonized with the respective algorithm of the YAC coupler software.
Definition at line 48 of file comin_parallel.F90.

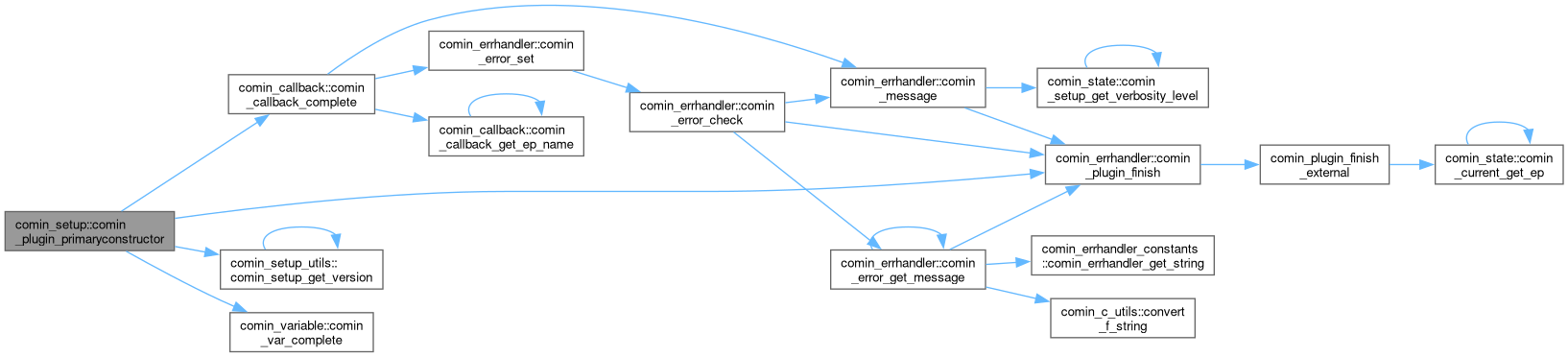

| subroutine, public comin_setup::comin_plugin_primaryconstructor | ( | type(t_comin_plugin_description), dimension(:), intent(in), target | plugin_list | ) |
Execute primary constructors.
| [in] | plugin_list | list of dynamic libs: |
Definition at line 137 of file comin_setup.F90.

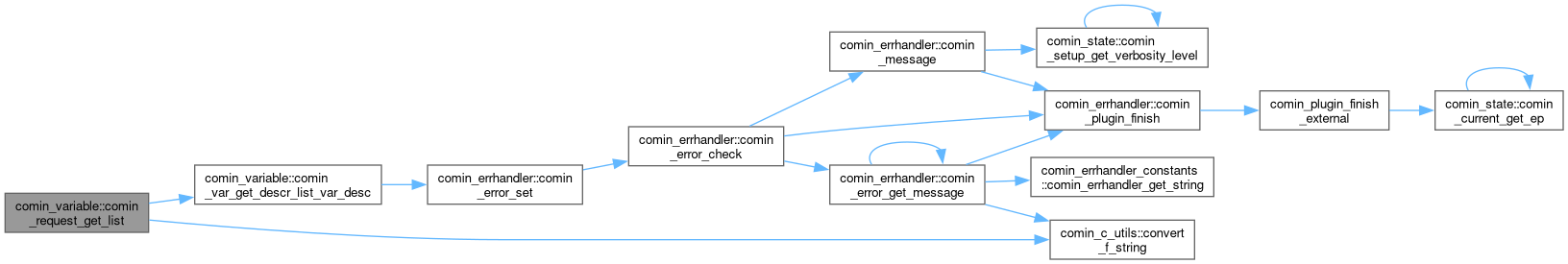

| type(c_ptr) function, public comin_variable::comin_request_get_list |
Definition at line 107 of file comin_variable.F90.
| subroutine, public comin_setup::comin_setup_check | ( | character(len=*), intent(in) | plugin_str, |
| integer, intent(in) | wp_check ) |
Performs basic compatibility checks.
| [in] | plugin_str | plugin name |
| [in] | wp_check | KIND value for compatibility checks. |
Definition at line 206 of file comin_setup.F90.

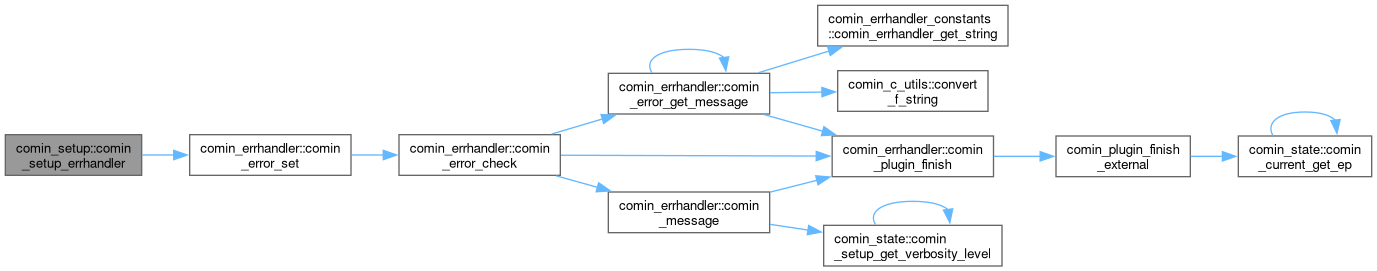

| subroutine, public comin_setup::comin_setup_errhandler | ( | procedure(comin_host_errhandler_fct) | error_handler | ) |
Sets the global error handler procedure pointer.
To be called by the host application (ICON).
Aborts with an error code if the error handler has already been set.
| error_handler | error handler |
Definition at line 374 of file comin_setup.F90.
| subroutine, public comin_setup::comin_setup_finalize |
Destructor.
Definition at line 289 of file comin_setup.F90.
| integer function, public comin_state::comin_setup_get_verbosity_level |
Returns verbosity level.
Definition at line 120 of file comin_state.F90.
| subroutine, public comin_setup::comin_setup_init | ( | logical, intent(in) | lstdout, |
| integer, intent(in), optional | output_unit ) |
Initialize the comin stateThis routine needs to be called by the host before any other comin call.
| [in] | lstdout | do print on stdout or not |
| [in] | output_unit | output unit to print messages to |
Definition at line 273 of file comin_setup.F90.
| subroutine, public comin_state::comin_setup_set_verbosity_level | ( | integer, intent(in) | iverbosity | ) |
Sets verbosity level, related to ICON's msg_level. 0 = silent.
Definition at line 112 of file comin_state.F90.
| subroutine, public comin_variable::comin_var_list_append | ( | type(t_comin_var_descriptor), intent(in) | var_descr, |
| type(c_ptr), intent(in) | cptr, | ||
| type(c_ptr), intent(in) | device_ptr, | ||
| integer, dimension(5), intent(in) | array_shape, | ||
| integer, intent(in) | type_id, | ||
| integer, dimension(5), intent(in) | dim_semantics, | ||
| logical, intent(in) | lcontainer, | ||
| integer, intent(in) | ncontained, | ||
| type(t_comin_var_handle), intent(out) | var_handle ) |
Append item to variable list.
Definition at line 160 of file comin_variable.F90.
| subroutine, public comin_variable::comin_var_list_finalize |
Destruct variable list, deallocate memory.
Definition at line 220 of file comin_variable.F90.

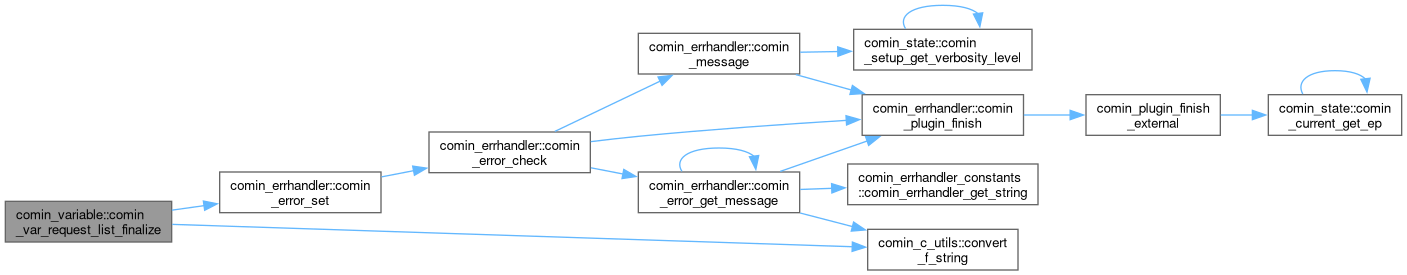

| subroutine, public comin_variable::comin_var_request_list_finalize |
Destruct variable request list, deallocate memory.
Definition at line 239 of file comin_variable.F90.

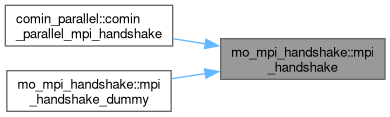

| subroutine, public mo_mpi_handshake::mpi_handshake | ( | integer, intent(in) | comm, |
| character(len=max_groupname_len), dimension(:), intent(in) | group_names, | ||
| integer, dimension(size(group_names)), intent(inout) | group_comms ) |
Procedure for the communicator splitting ("MPI handshake") that has been harmonized with the respective algorithm of the YAC coupler software.
Definition at line 23 of file mo_mpi_handshake.F90.
